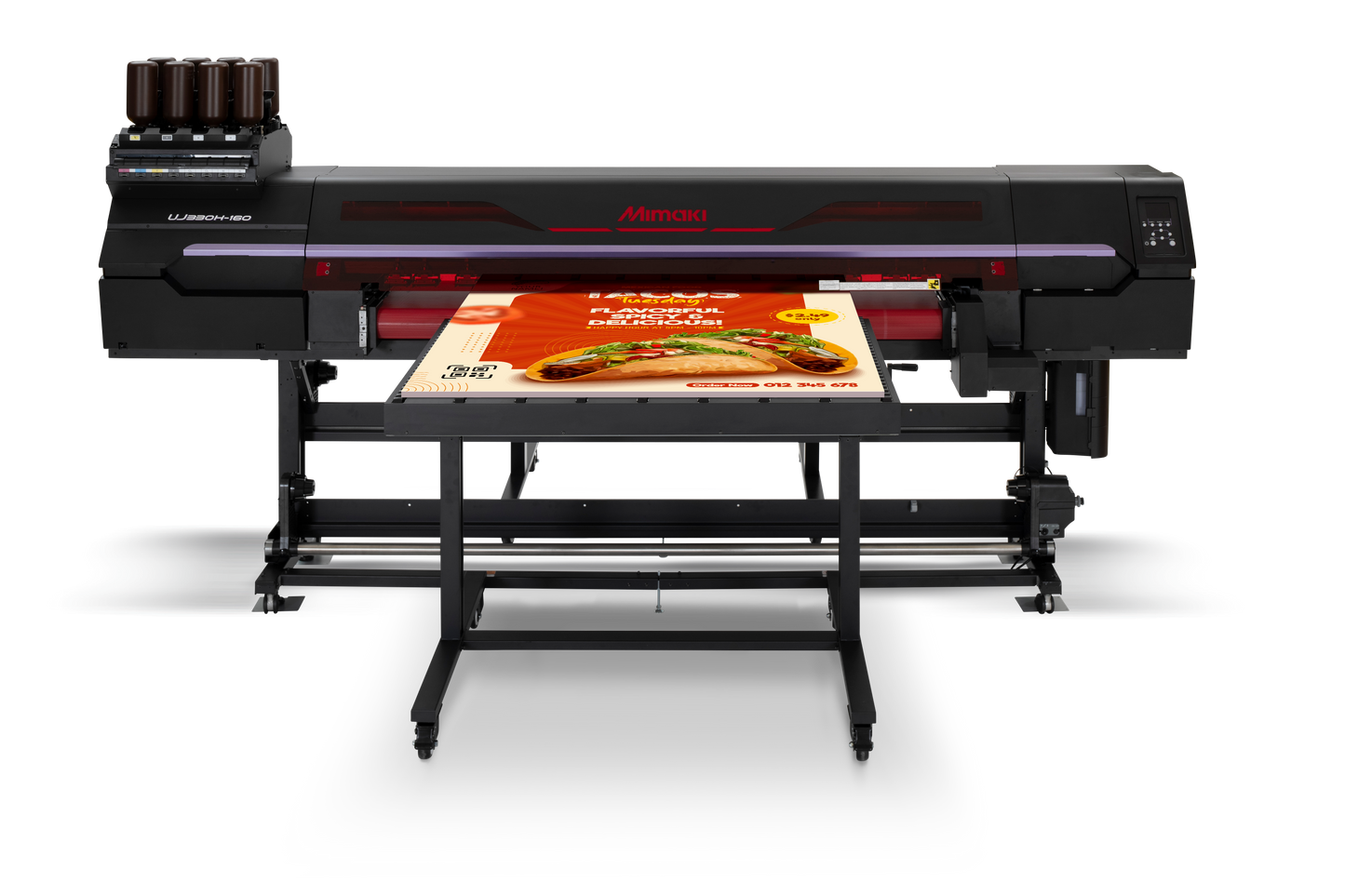

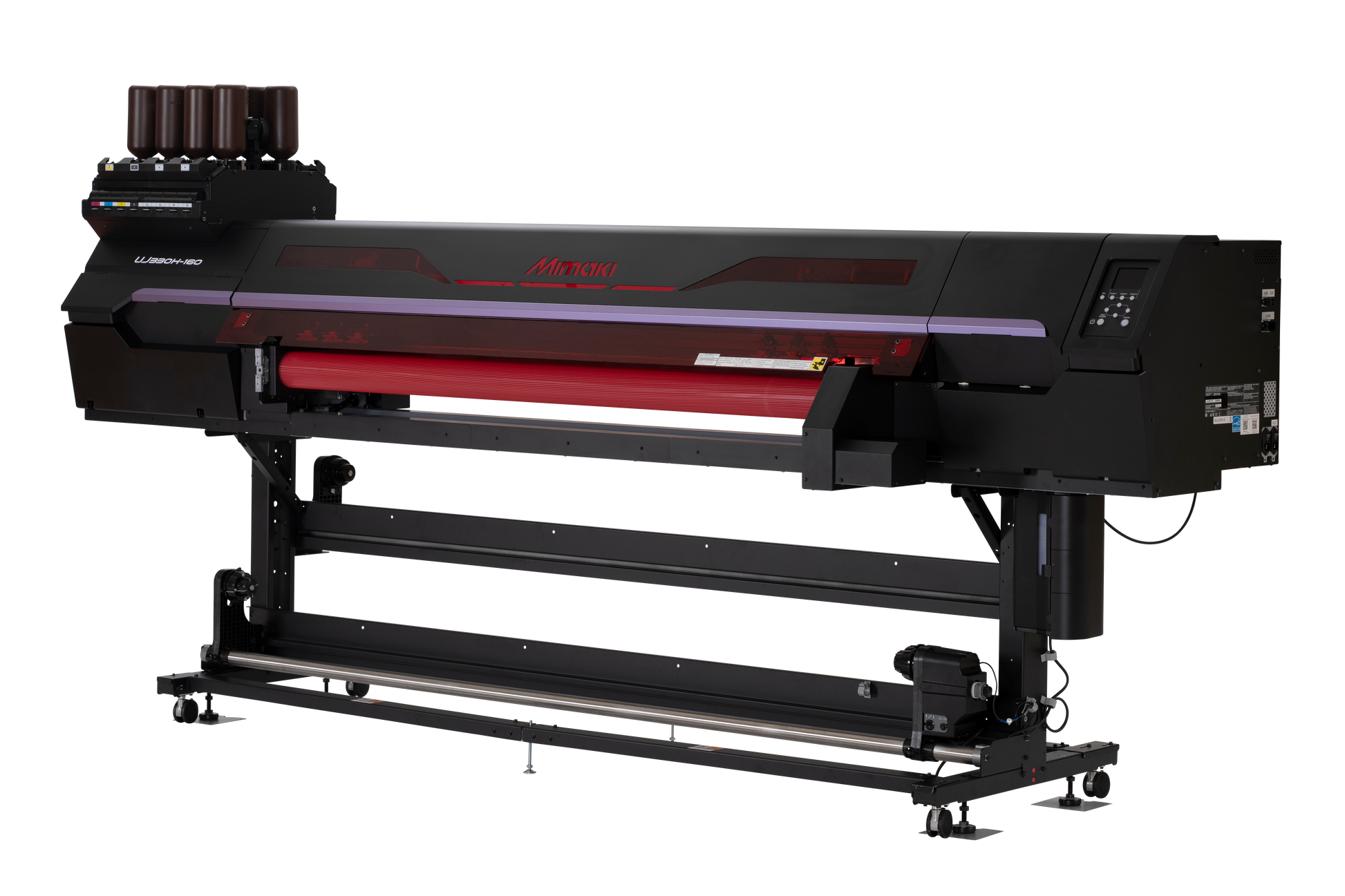

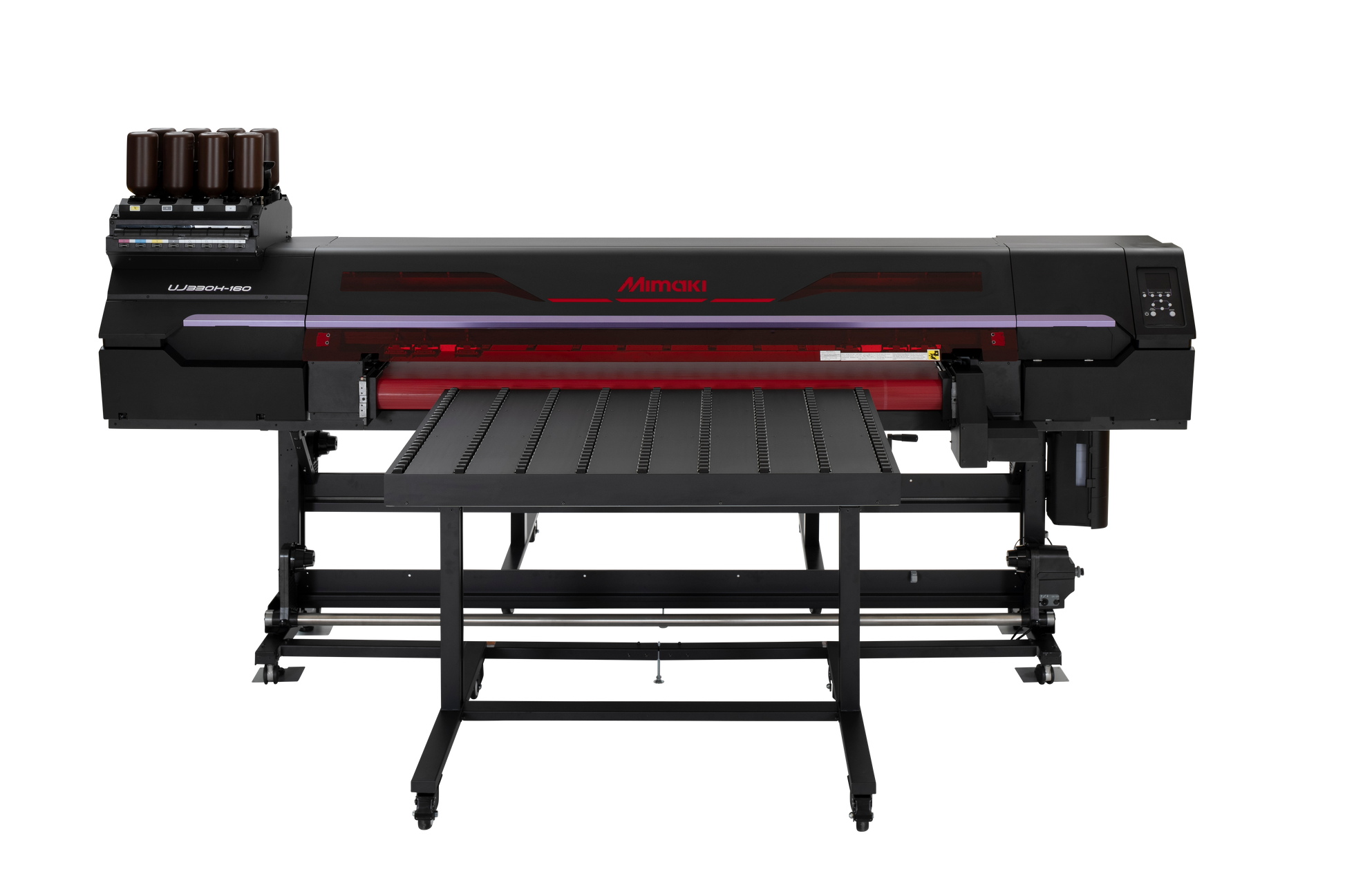

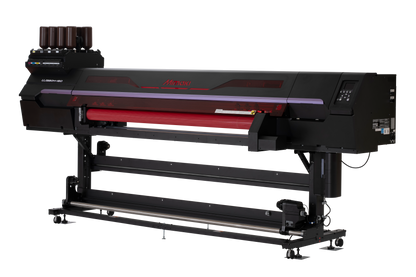

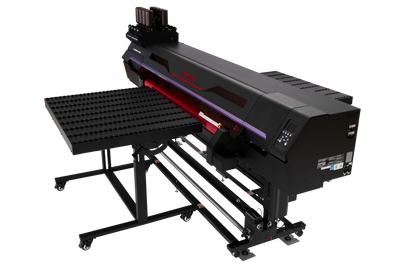

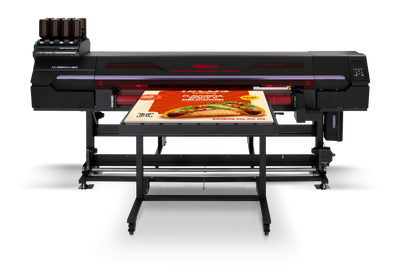

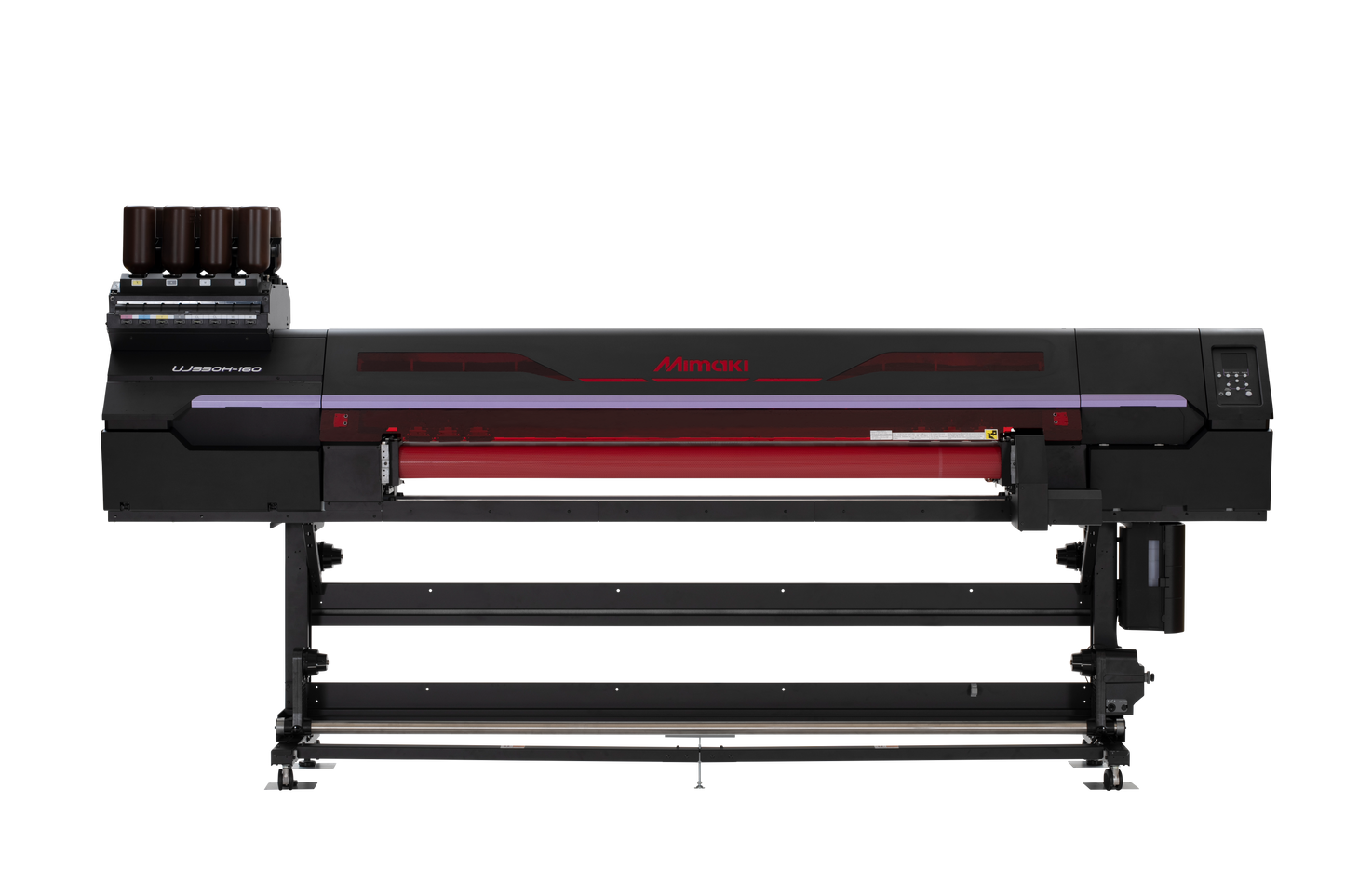

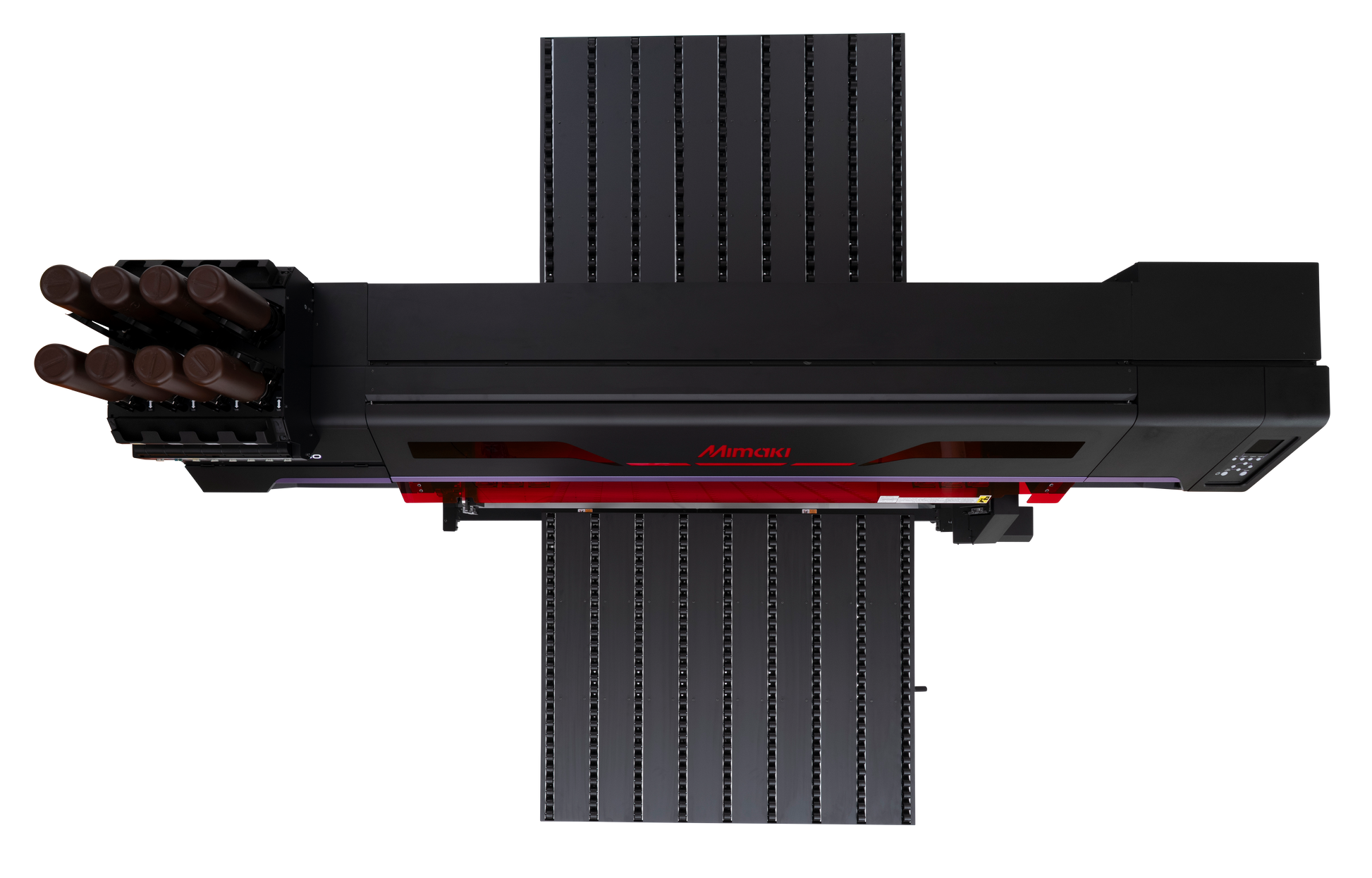

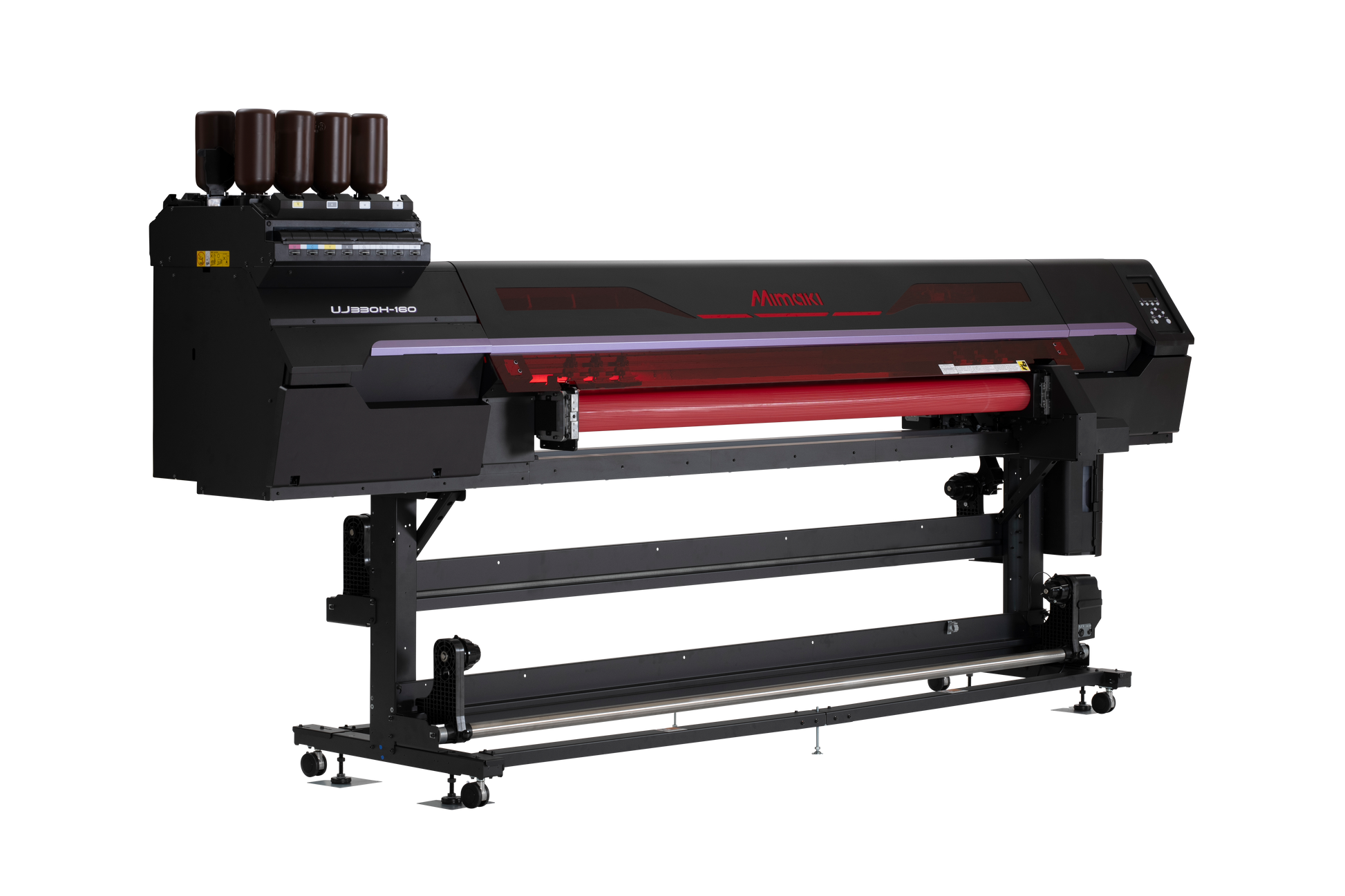

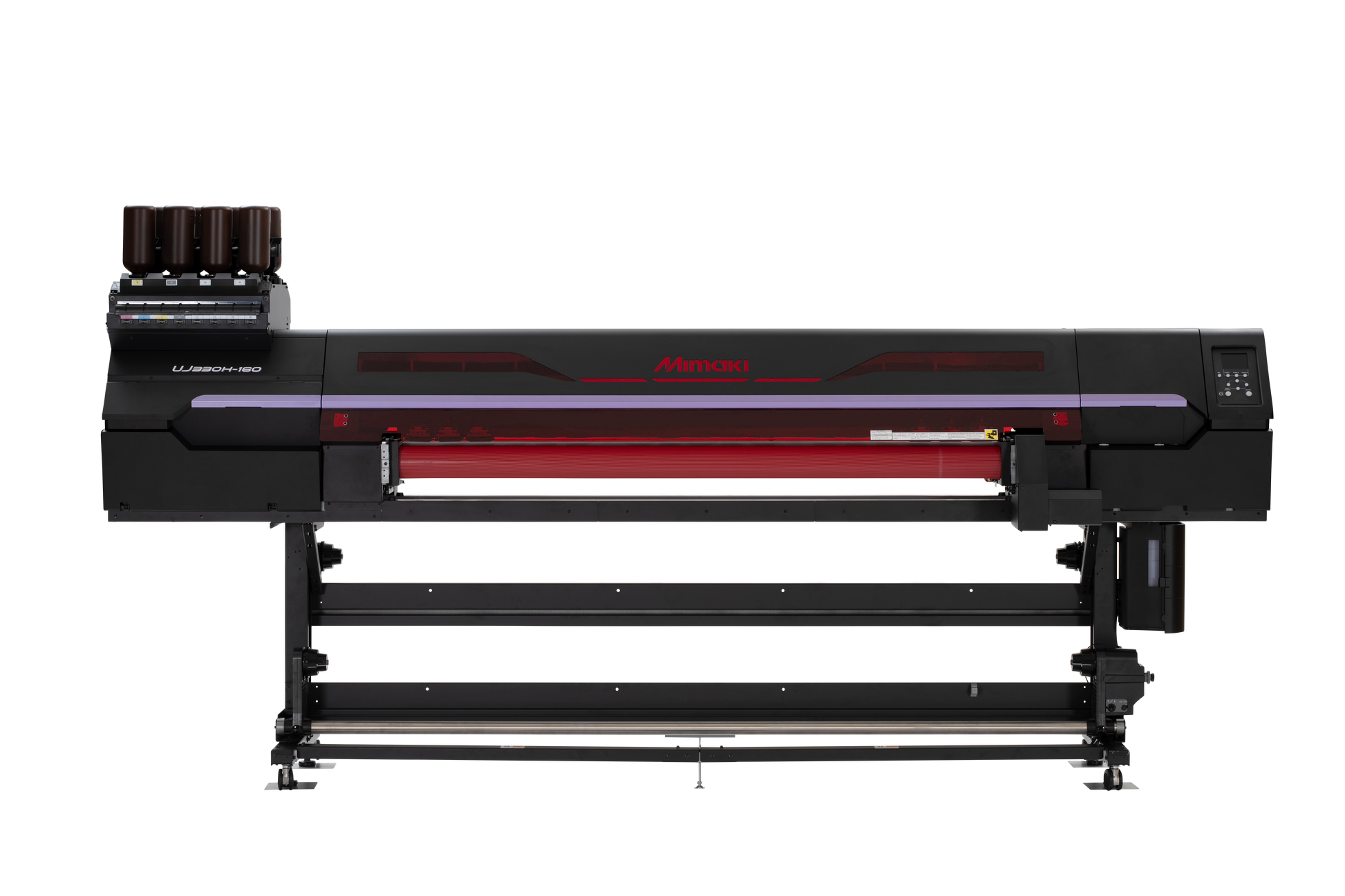

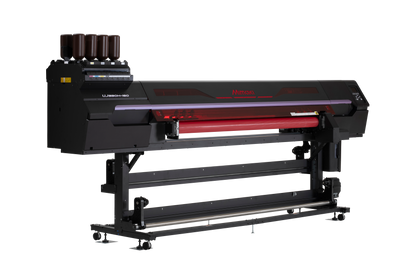

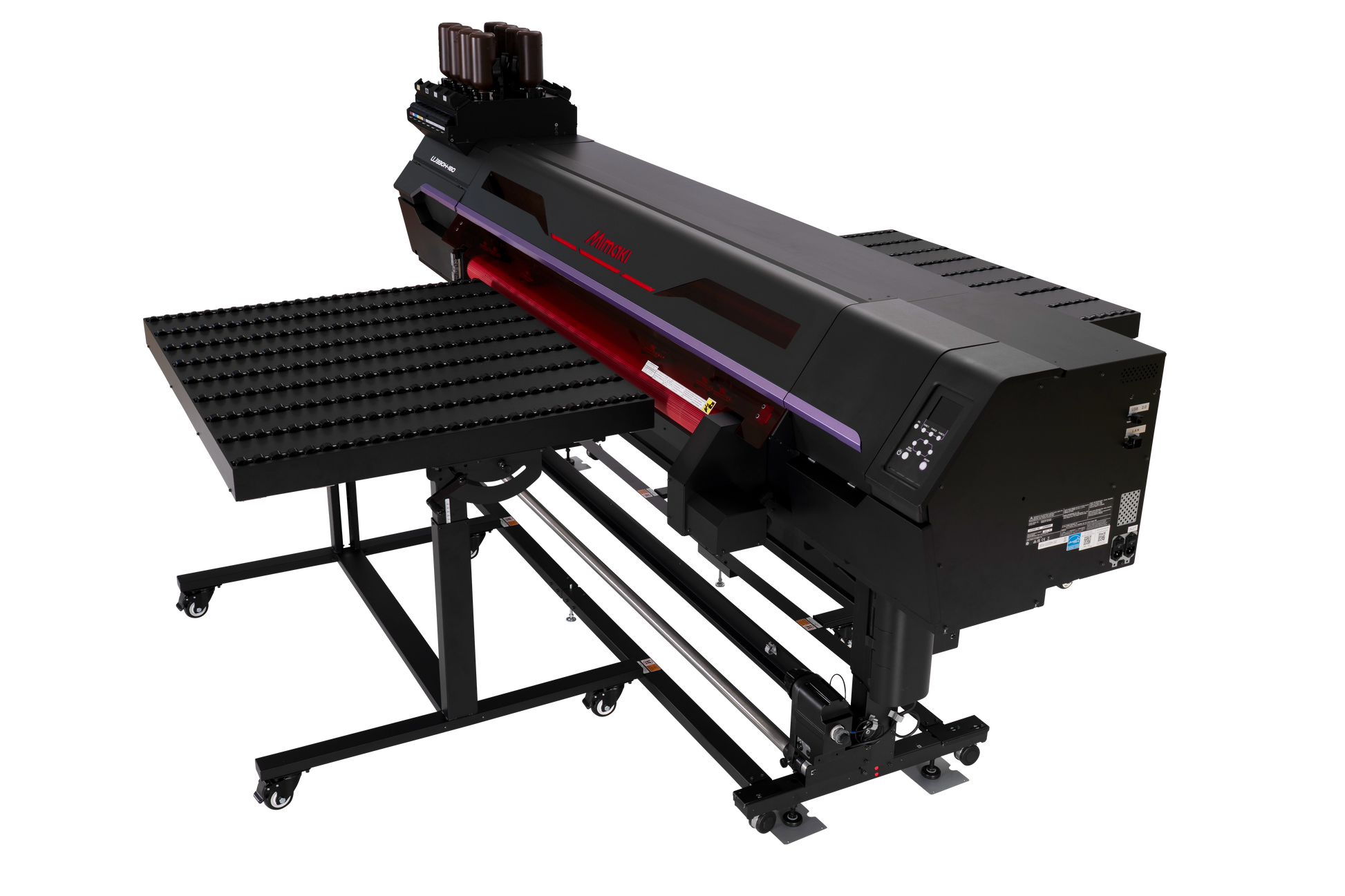

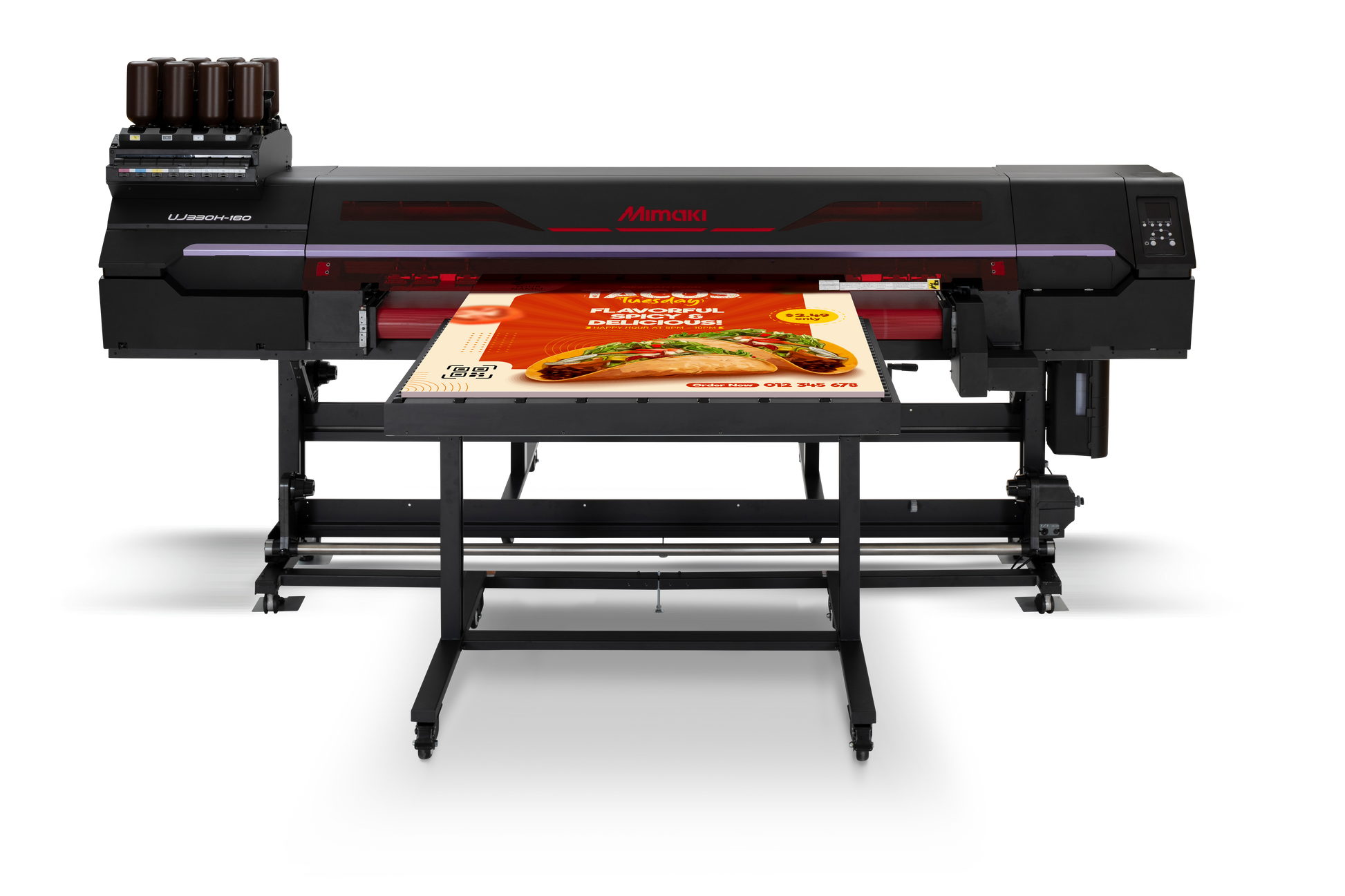

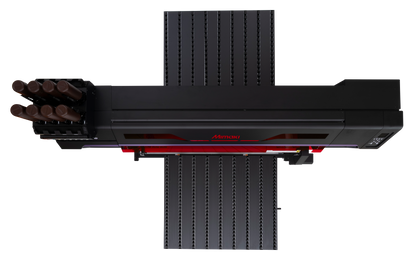

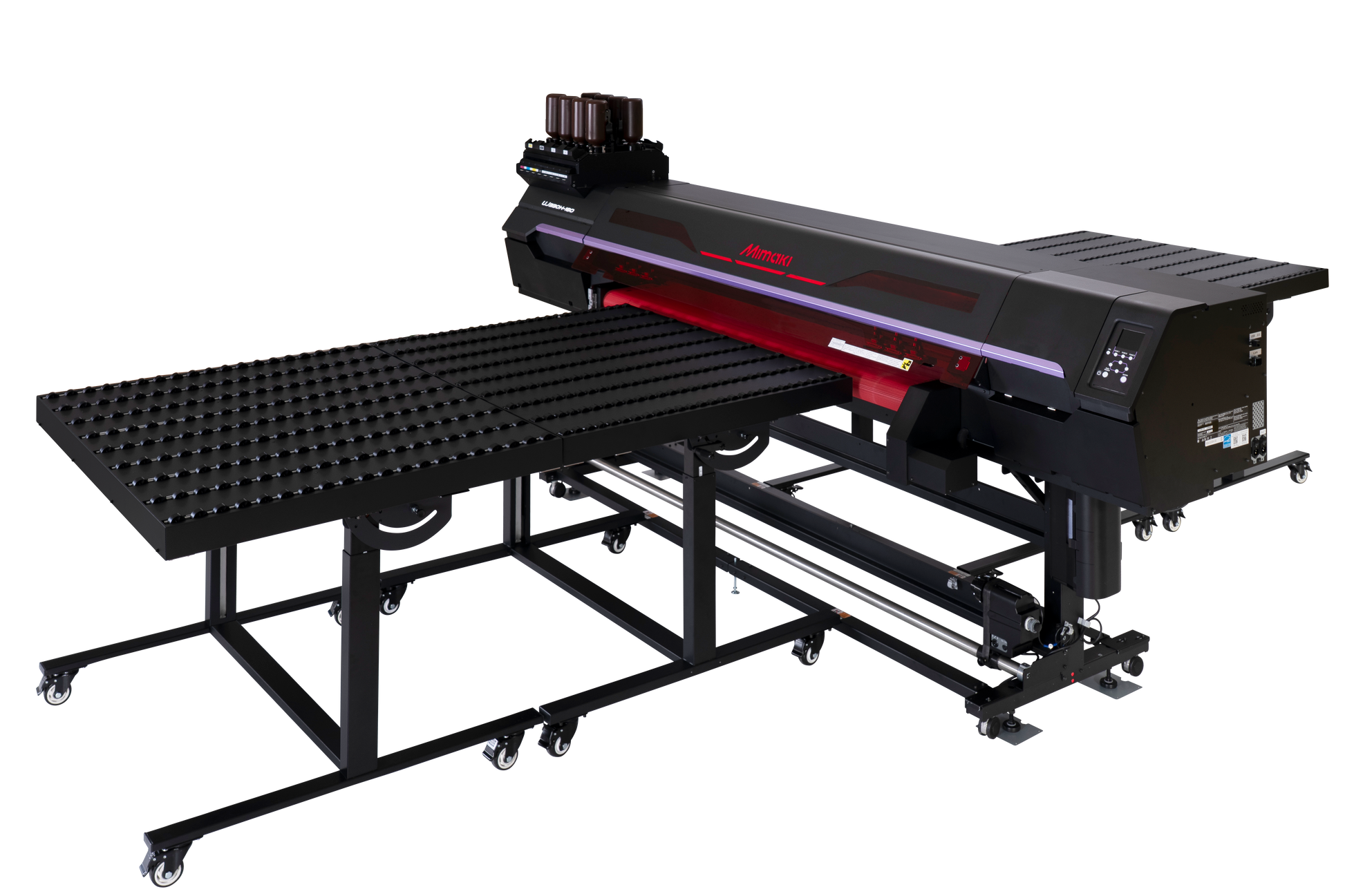

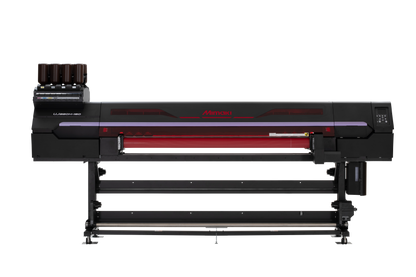

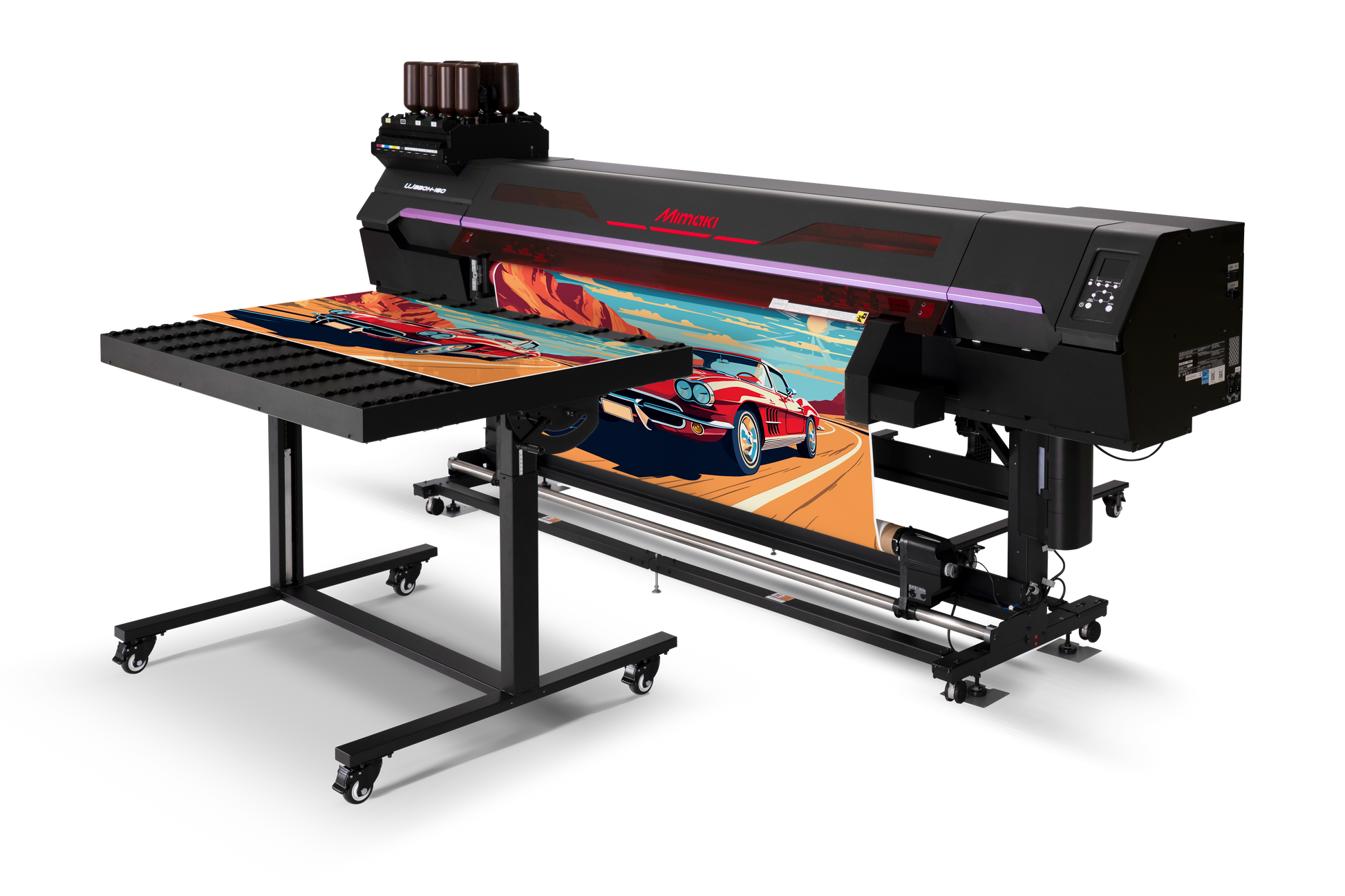

Name: Mimaki UJ330H-160 Hybrid Roll / Rigid UV Printer
Brand: Mimaki
SKU: UJ330H-160
Price: 39995.0 USD
Availability: InStock

Shop Supplies Shop Equipment

Featured Products

This Month's Highlights...

Vendor:
Vector
Vector Whiteway 13 oz White Banner

Regular price From $155.00

Sale price From $155.00 Regular price
Unit price per
Vendor:
Avery Dennison
MPI1105SC EASY APPLY RS

Regular price From $462.83

Sale price From $462.83 Regular price
Unit price per
Vendor:
Vector
Vector Flagship White Vinyl Premium 90 lb Liner Gloss

Regular price From $62.66

Sale price From $62.66 Regular price
Unit price per
Vendor:
3M
3M IJ35C Scotchcal™ Graphic Film with Comply™ Adhesive

Regular price From $232.98

Sale price From $232.98 Regular price
Unit price per
Vendor:
Vector
Vector White Semi-Rigid Film 6 mil Permanent Gloss

Regular price From $164.20

Sale price From $164.20 Regular price
Unit price per

Our range. Check out everything on offer.

Browse by Brand

Superior Service

Superior customer service for sign supplies and a great service department for Mimaki and Mutoh equipment

Debra C.
New Brunswick, New Jersey
AMAZING SERVICE!

Kevin and the entire team were so considerate of all of my questions and made time to demo and show how everything should be. This is the place to go if you want to do things right! Thank you Beacon Graphics.

ALC
Philadelphia, PA
Great selection

Always helpful with great products and pricing.

Paul K.
Danville, PA
Top quality

They always have what I need, when I need it. Great company with Good prices.

Jonathan S.
New York, NY

WELL TRUSTED
Over 100k customers
SUPER FAST
With Express delivery
EXPERT HELP
Mon-Friday, 8am-5pm
BEST PRICES
Unbeatable value

Print System
Printhead	2 heads (staggered) 8 print bars per head
Print Resolution	Y: 600, 1200 dpi \| X: 600, 900, 1200, 1800 dpi
Print Speed (4 color mode)	236.8 sqft/hr (22.0 sqm/hr) max

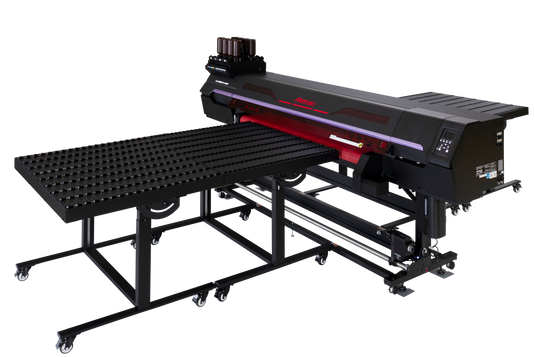

Maximum Print Width	Rigid – 5 ft x 10 ft Roll – 64 in
Media
Media Thickness	Up to 2 in (50 mm)
Media Weight	Rigid – up to 55 lbs. (25 kg) Roll – up to 99 lbs. (45 kg)
Ink
Ink Type / Color	ELS-170 & ELS-175* – CMYK+KYMC / CMKY+Ci +WW / CMYK+Lm+Lc+WW LATAM Market Only LUS-210 – CCMMYYKK / CCMMYK+WW (*only sold in certain countries)
Ink Package Size	1 L Bottle
Connectivity & Power
Interface	(Recommended) Ethernet 1000BASE-T, USB 2.0 Hi-Speed
Power Supply	AC (100–120V / 200–240V ±10%) x2, 50/60Hz ±1Hz
Power Consumption	Maximum – 1600W Average during operation 800W Sleep mode 4.5W or less
Environment
Operational Environment	Temperature: 68–86°F (20–30°C) Humidity: 35–65% Recommended temperature: 68–77°F (20–25°C) Dust level: General office level
Physical
Dimensions (W x D x H)	126.9 in x 30.9 in x 55.9 in / 3,225 mm x 785 mm x 1,420 mm (without tables) 126.9 in x 104.9 in x 55.9 in / 3,225 mm x 2,664 mm x 1,420 mm (with one set of tables) 126.9 in x 185.5 in x 55.9 in / 3,225 mm x 4,712 mm x 1,420 mm (with two sets of tables)
Weight	849 lbs. (385 kg)
Options	Ionizer Bar & Bracket (IUJ330H-160 Ionizer kit)
Compliance & Certifications
Certifications	Compliant with 62368-1, IEC CB, CE (EMC, Low voltage, Machinery directive, and RoHS) REACH, VCCI Class A, FCC Class A KRCM, EAC, UKCA, EnergyStarr

Featured Products

Mimaki UJ330H-160 Hybrid Roll / Rigid UV Printer

Our range. Check out everything on offer.

Browse by Brand

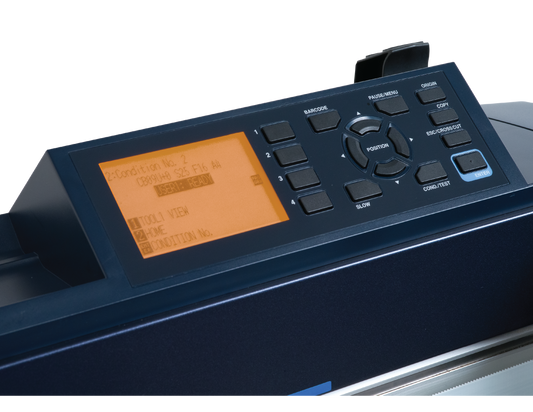

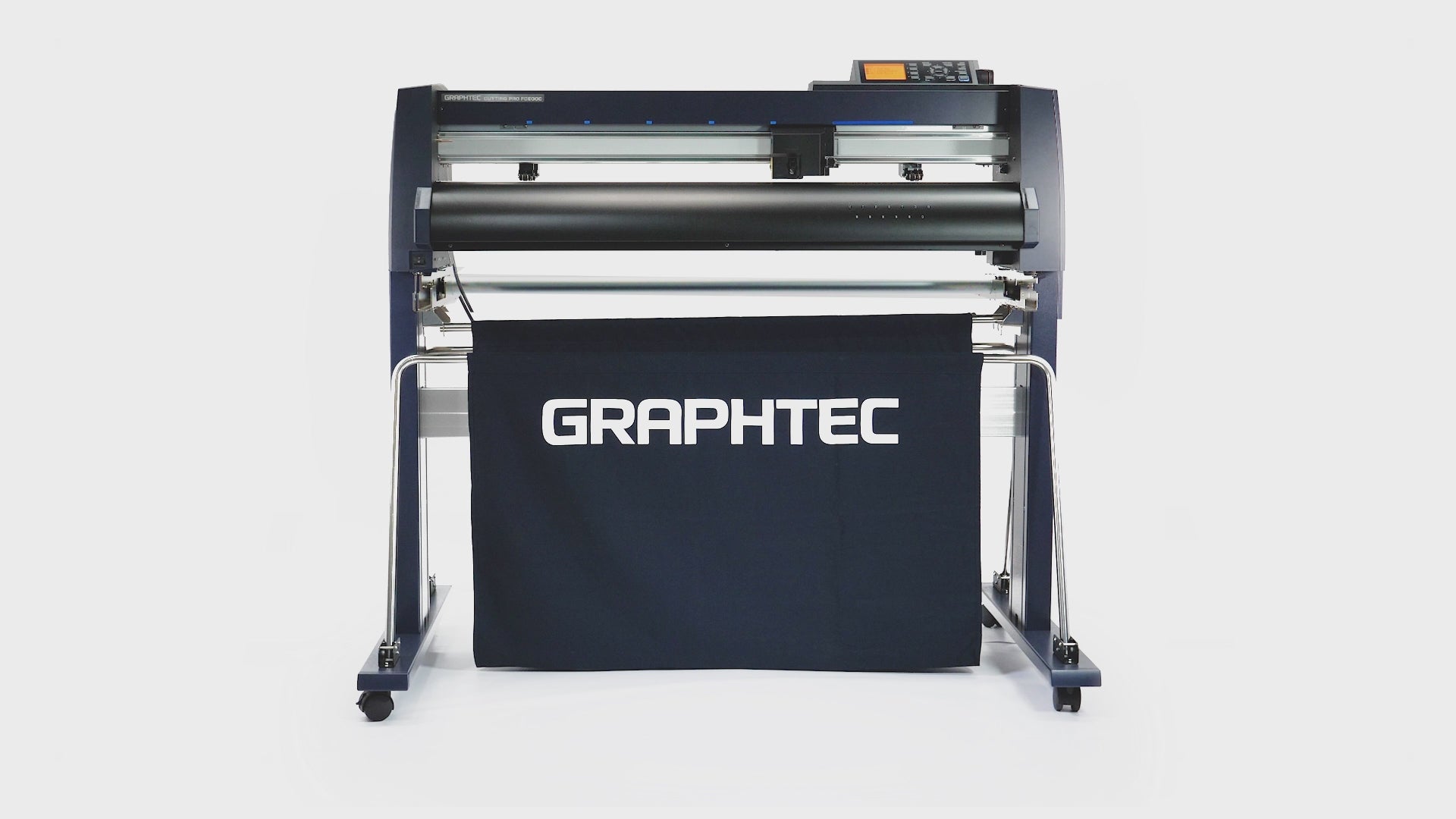

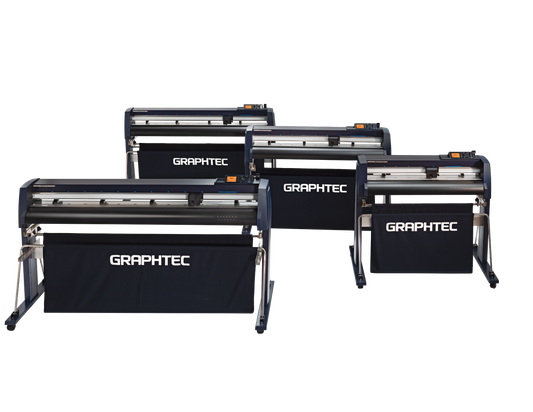

Graphtec FC9000 Series
